Magnetisch Geleviteerde Centrifugale Luchtcompressor

Oil-Free High-Speed Maglev Centrifugal Air Compressor

Merknaam:	Jufeng
Modelnummer:	JFMC220L-25
MOQ:	1 unit
Prijs:	contact us
Verpakking:	Verpakken in houten dozen
Betalingsvoorwaarden:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

Detailinformatie

Productbeschrijving

Detailinformatie

Place of Origin:

China

Certificering:

CE, ISO, etc.

Document:

Naam:

Centrifugale luchtcompressor met magnetische levitatie

Model:

JFMC220L-25

Luchtstroom:

75m³/min

Nominaal vermogen:

220 kW

snelheid:

36000 RPM

Maat:

3150*1650*1953mm

Gewicht:

1688 kg

Installatie:

Easy.

Levering vermogen:

20 eenheden per maand

Markeren:

Eesy Air Pressure Tank

Carbon steel Air Pressure Tank

Eesy Air Pressure Tank Carbon steel

Productbeschrijving

Oil-Free High-Speed Maglev Centrifugal Air Compressor

Product introduction

Our Oil-Free High-Speed Maglev Centrifugal Air Compressor represents the future of industrial air compression. By integrating advanced magnetic bearing technology and a high-speed permanent magnet motor, it completely eliminates the need for lubricating oil, delivering 100% pure, oil-free air. This high-efficiency centrifugal compressor not only dramatically reduces energy consumption but also ensures near-zero maintenance, providing a lower total cost of ownership for demanding industries.

Product features

1. 100% Oil-Free Air, Guaranteed.

Benefit: Achieve ISO Class 0 air purity certification, eliminating the risk of product contamination. This is critical for sanitary applications in the Pharmaceutical, Food & Beverage, and Electronics manufacturing sectors.

2. Advanced Magnetic Levitation Bearing Technology.

Benefit: Our maglev centrifugal compressor features contact-free operation, which eliminates mechanical wear, reduces vibration, and removes the need for gearboxes and lubricants. This results in unparalleled reliability and a significant reduction in maintenance costs.

3. Exceptional Energy Efficiency & Variable Speed Drive.

Benefit: The integrated high-speed motor and variable speed drive (VSD) technology allow the compressor to match output exactly to air demand. This optimizes energy use, cutting energy costs by up to 30% compared to conventional lubricated screw compressors.

4. Ultra-Low Maintenance & Quiet Operation.

Benefit: With no oil, filters, gears, or mechanical wear parts to replace, maintenance is simplified to a minimum. Enjoy a low maintenance compressor that reduces operational downtime and costs. Its compact design and quiet operation make it ideal for integration into any facility.

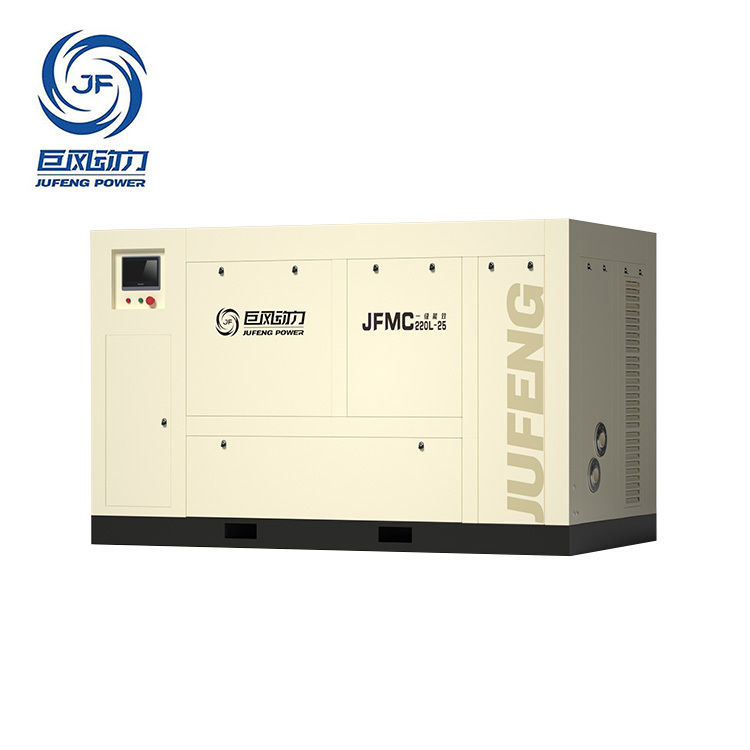

Product photo

Product parameters

Model	Rated power kw	Discharge pressure kPa	Inlet flow rate m³/min	Flow regulation range
JFMC120L-25	120	250	40	65%~100%
JFMC120L-30		300	35	65%~100%
JFMC120L-35		350	32	65%~100%
JFMC160L-20	160	200	63	65%~100%
JFMC160L-25		250	52	65%~100%
JFMC160L-30		300	48	60%~100%
JFMC160L-35		350	45	70%~100%
JFMC220L-20	220	200	85	65%~100%
JFMC220L-25		250	75	60%~100%
JFMC220L-30		300	65	70%~100%
JFMC220L-35		350	60	65%~100%
JFMC300L-20	300	200	112	65%~100%
JFMC300L-25		250	98	55%~100%
JFMC300L-30		300	90	65%~100%
JFMC300L-35		350	80	65%~100%
JFMC350L-20	350	200	135	60%~100%
JFMC350L-25		250	118	60%~100%
JFMC350L-30		300	108	60%~100%
JFMC350L-35		350	98	65%~100%
JFMC450L-20	450	200	170	50%~100%
JFMC450L-25		250	152	55%~100%
JFMC450L-30		300	140	70%~100%
JFMC450L-35		350	125	75%~100%
JFMC220H-80	220	800	45	50%~100%
JFMC315H-80	315	800	60	50%~100%
JFMC400H-80	400	800	75	50%~100%
JFMC550H-80	550	800	100	50%~100%
JFMC750H-80	750	800	135	50%~100%
